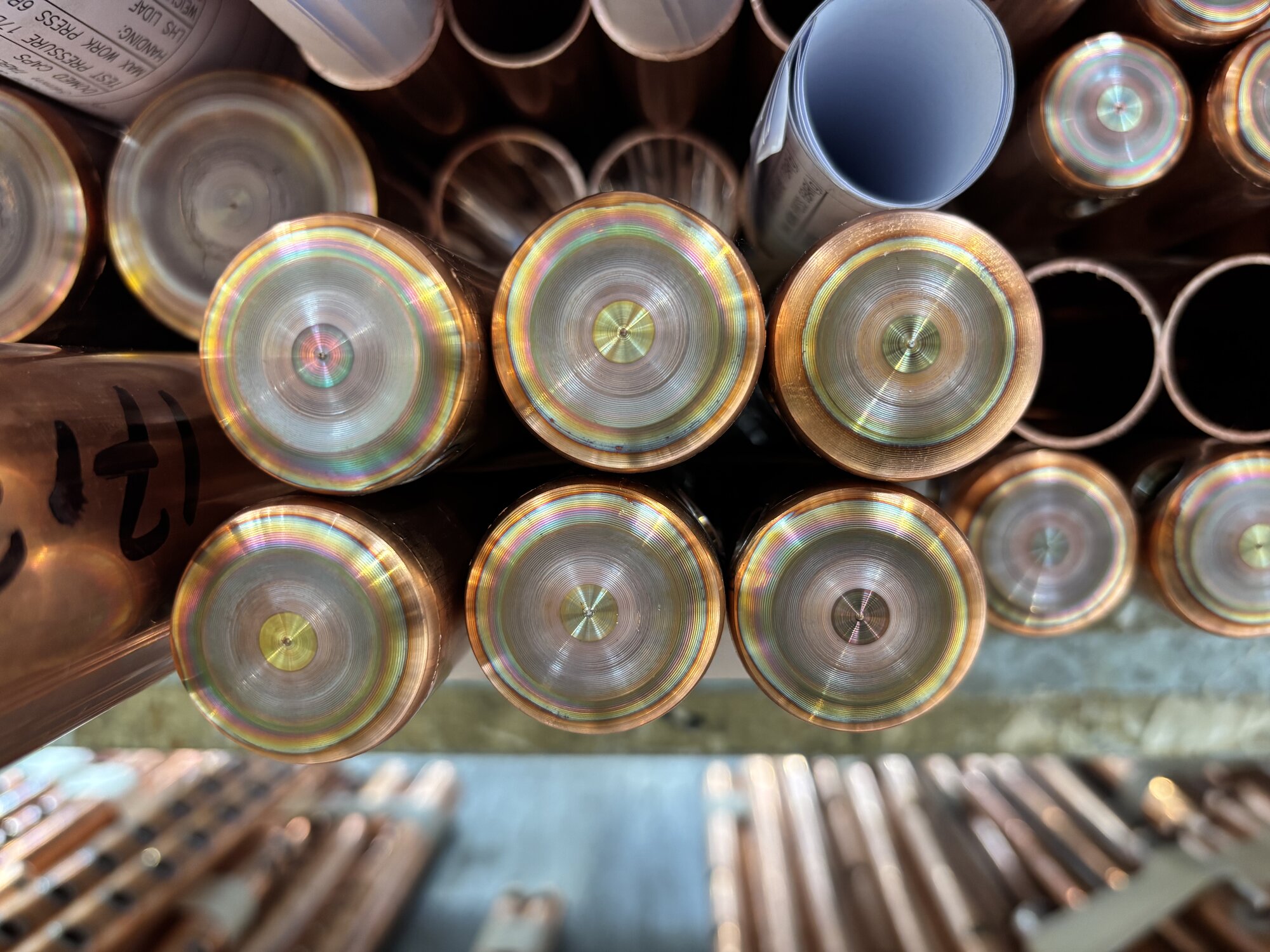

    Bespoke Steam Coils manufactured by HC Coils

    Steam Coils

    Bespoke steam coils with correct condensate management for your pressure and duty requirements.

    PED Compliant

    Technical Specifications

    Medium

    LP / HP Steam

    Design Pressure

    1-7 barG

    Fin Material

    Al, AluP, Cu, Cu-ET

    Tube Material

    Thick Wall Copper

    Connections

    BSP / PN16 Flanged

    For Air Conditioning & Process Heating

    Our steam air heating coils are designed for efficient heat transfer using dry saturated steam, making them ideal for both HVAC systems and industrial process heating applications. Each coil is bespoke to suit a wide range of ducting, plenums, and air handling units. We manufacture coils to meet virtually any dimensional or performance requirement. Whether for new installations or retrofit projects, our solutions are engineered to integrate seamlessly into your system.

    Performance Optimisation

    Steam is an efficient and widely distributed heat transfer medium, making it ideal for building heating systems and industrial processes. However, correct system design is essential to ensure long-term performance and reliability.

    Each coil is individually selected using advanced computer software to deliver:

    • Maximum thermal efficiency
    • Minimal air pressure drop
    • Performance tailored to your specific application

    Construction & Specification

    Our coils are built for durability and performance:

    • Seamless drawn copper tubes (EN12735-2 standard)
    • Mechanically expanded into aluminium fins with die-formed, self-spacing collars
    • Copper headers silver brazed to tube ends
    • BSP(M) flow and return connections
    • Heavy gauge galvanised steel casing for structural strength
    • Tube end plates with collared holes to allow thermal expansion and contraction

    Testing & Quality Assurance

    Every coil undergoes rigorous testing to ensure reliability:

    • Pressure tested to 17 bar
    • Tested using dry compressed air under water for leak detection
    Bespoke steam coil with aluminium fins and copper headers

    Key Advantages

    • Expert Design — we help select the right coil and design for your application.
    • Robust Construction — high pressure rated materials, fully tested before dispatch.
    • Quality Assurance — pressure tested to 16 bar for leak detection.
    • Performance Optimisation — maximum thermal efficiency with minimal air pressure drop.

    Optional Features

    Polyester-coated aluminium fins — for corrosion resistance.

    Plain copper or tinned copper fins — alternative fin materials for specialised duties.

    Boxed ends — for high-pressure or positive-pressure duct systems (reduces air leakage).

    Stainless steel casings — for demanding environments.

    Typical Applications

    AHU

    Duct Mounted Coils

    Process Heating

    Healthcare

    Industrial Drying

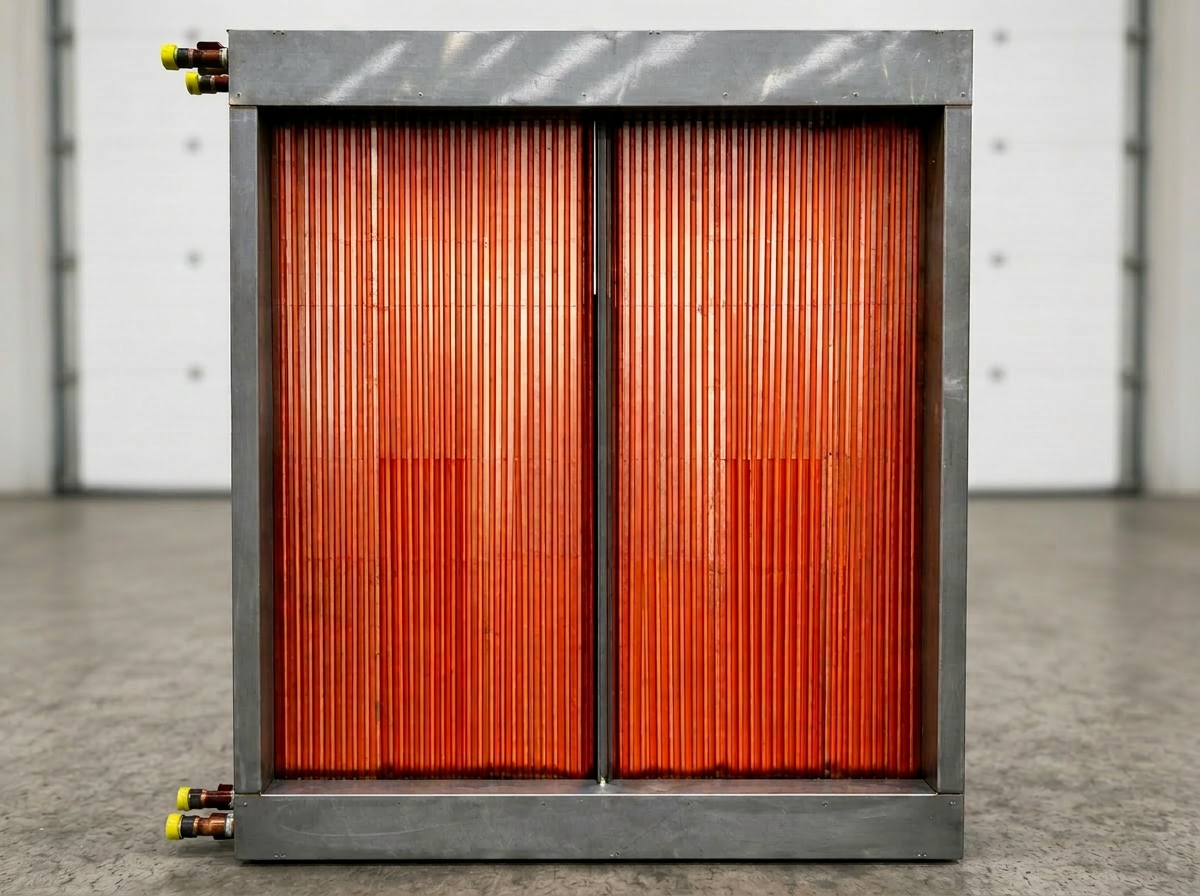

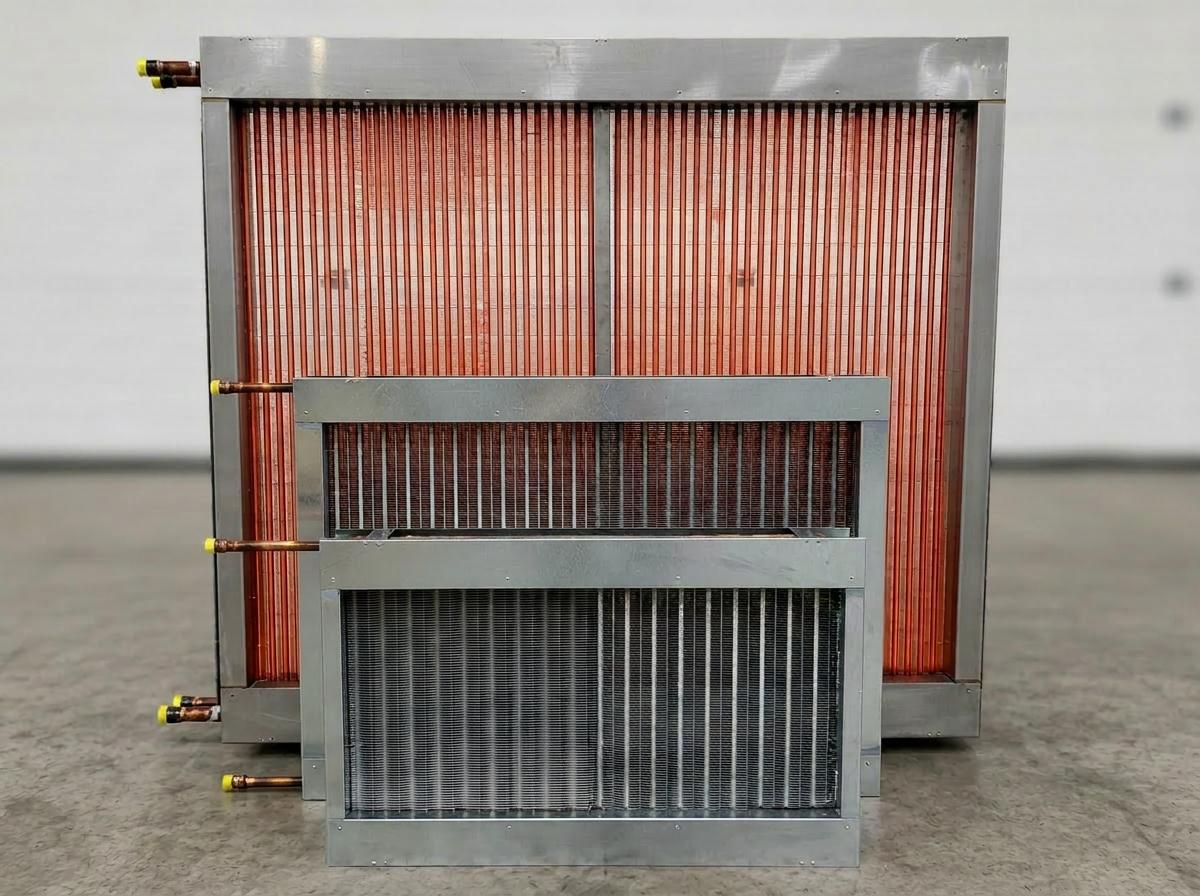

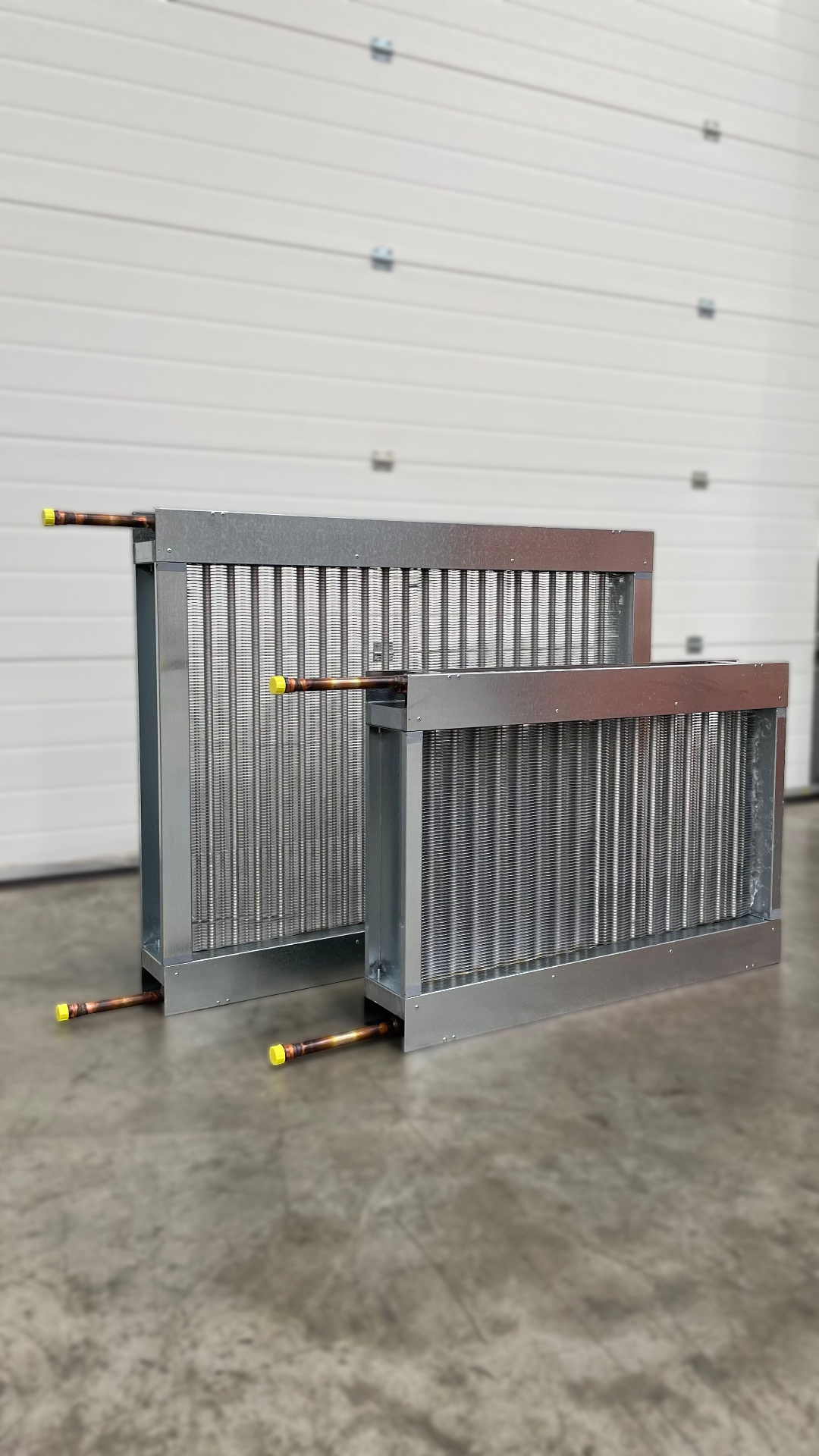

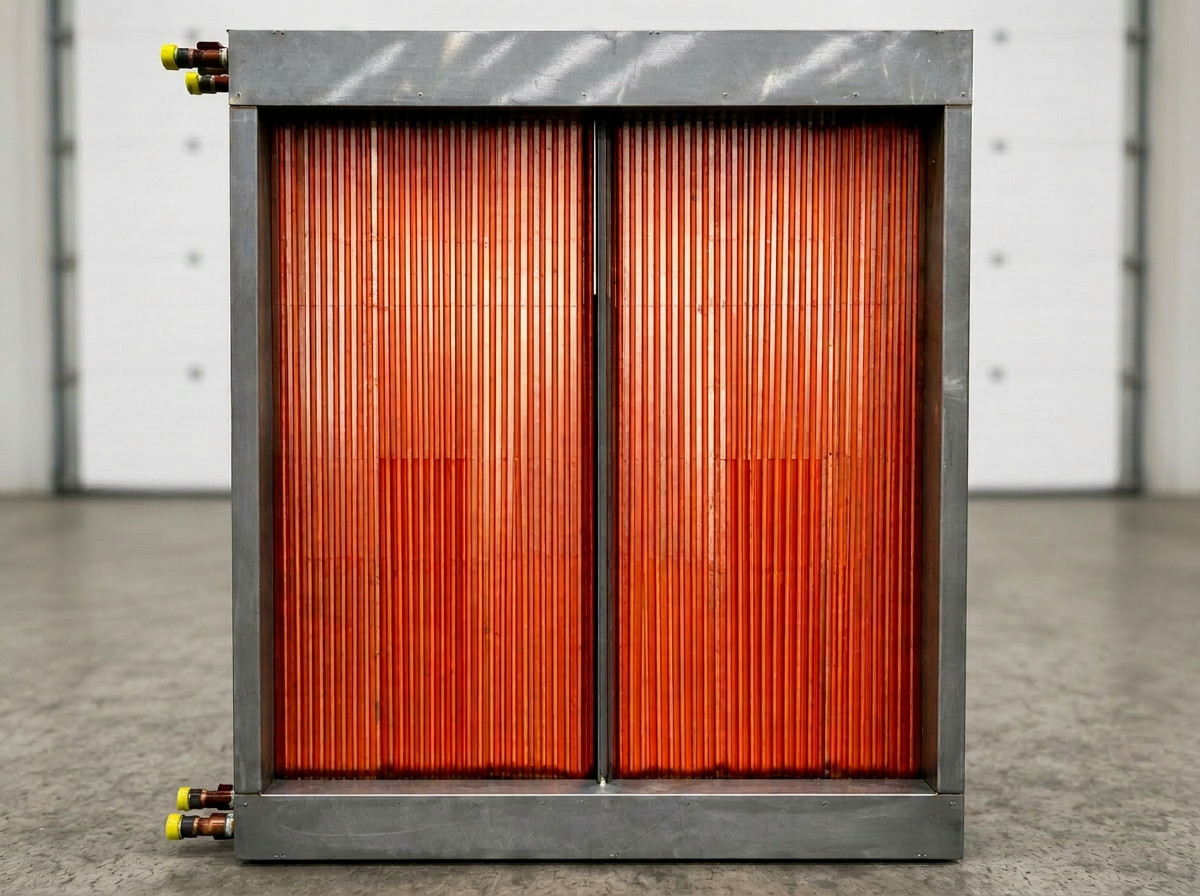

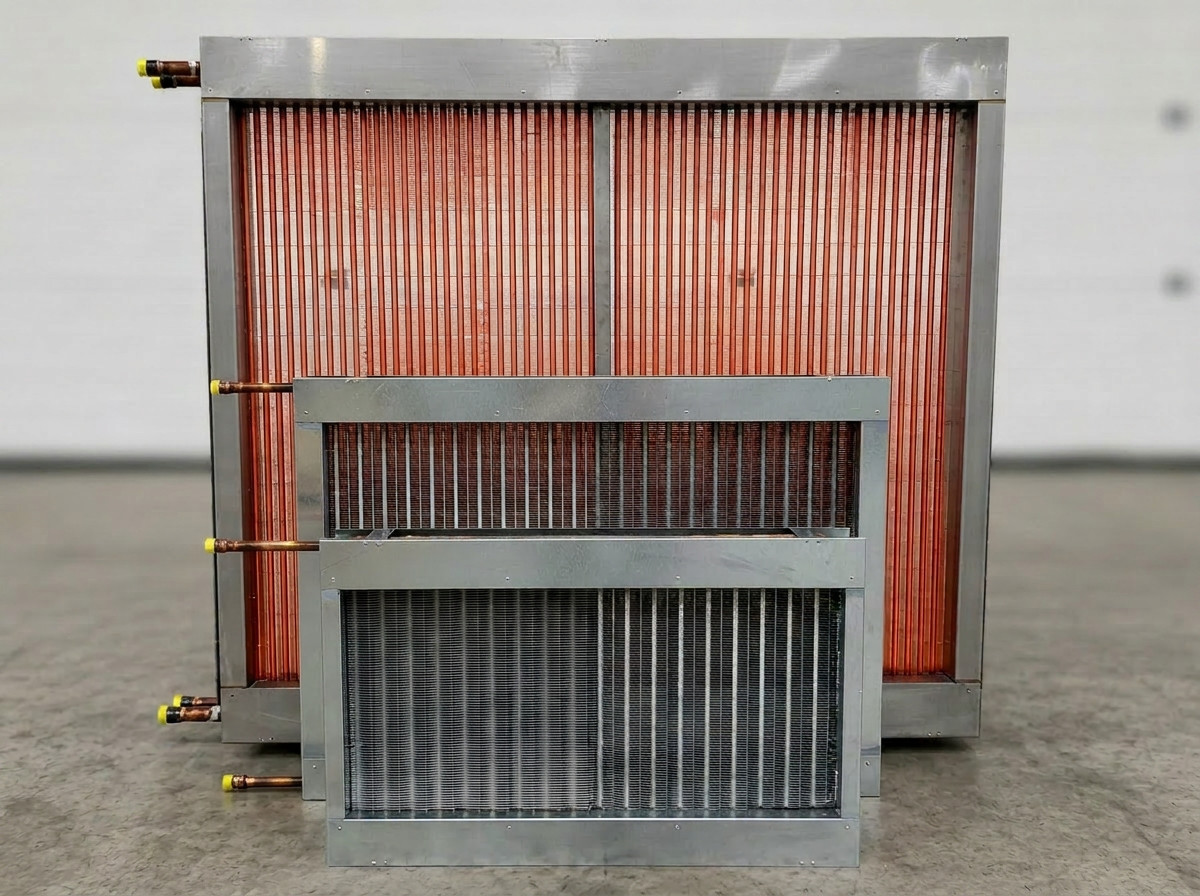

    Two bespoke steam coils with copper tubes and stainless steel casings displayed in the HC Coils workshopTwo bespoke steam coils with galvanised casings and copper connections in the HC Coils workshopLarge bespoke steam coil with copper tubes and stainless steel casing
    Get Engineering Advice on Steam Coils

    Downloads

    Product Catalogue

    Full specifications, dimensions and performance data.

    Download PDF

    Operation & Maintenance Manuals

    Installation, commissioning and maintenance instructions.

    Download O&M

    Standards & Accreditations

    All our products meet exceptional standards, achieved by testing and inspecting our coils and products regularly and adhering to strict procedures.

    Learn More
    "

    HC Coils are great to work with, on time, efficient, clean and tidy.

    Common Questions — Steam Coils

    Steam coils must be installed to promote condensate drainage. Improper installation can cause water hammer, freezing, and internal corrosion. Tubes must never be inclined upwards. Correct trap selection and condensate return pipework are essential.
