Industrial Floor Mounted Coolers (FVH/FV)
For applications requiring high air volumes and powerful cooling performance. Providing effective air circulation and consistent temperature control across large spaces.
Technical Specifications
Tube Material
Copper
Fin Material
Al, AluP, Cu, Cu-ET
Fan Options
AC, EC, High Pressure
Casing
Plain Galvanised / White Powder Coated / Stainless Watchcase
Medium
DX / Glycol / Coolflow DXT
Industrial Floor Mounted Coolers (FVH/FV)

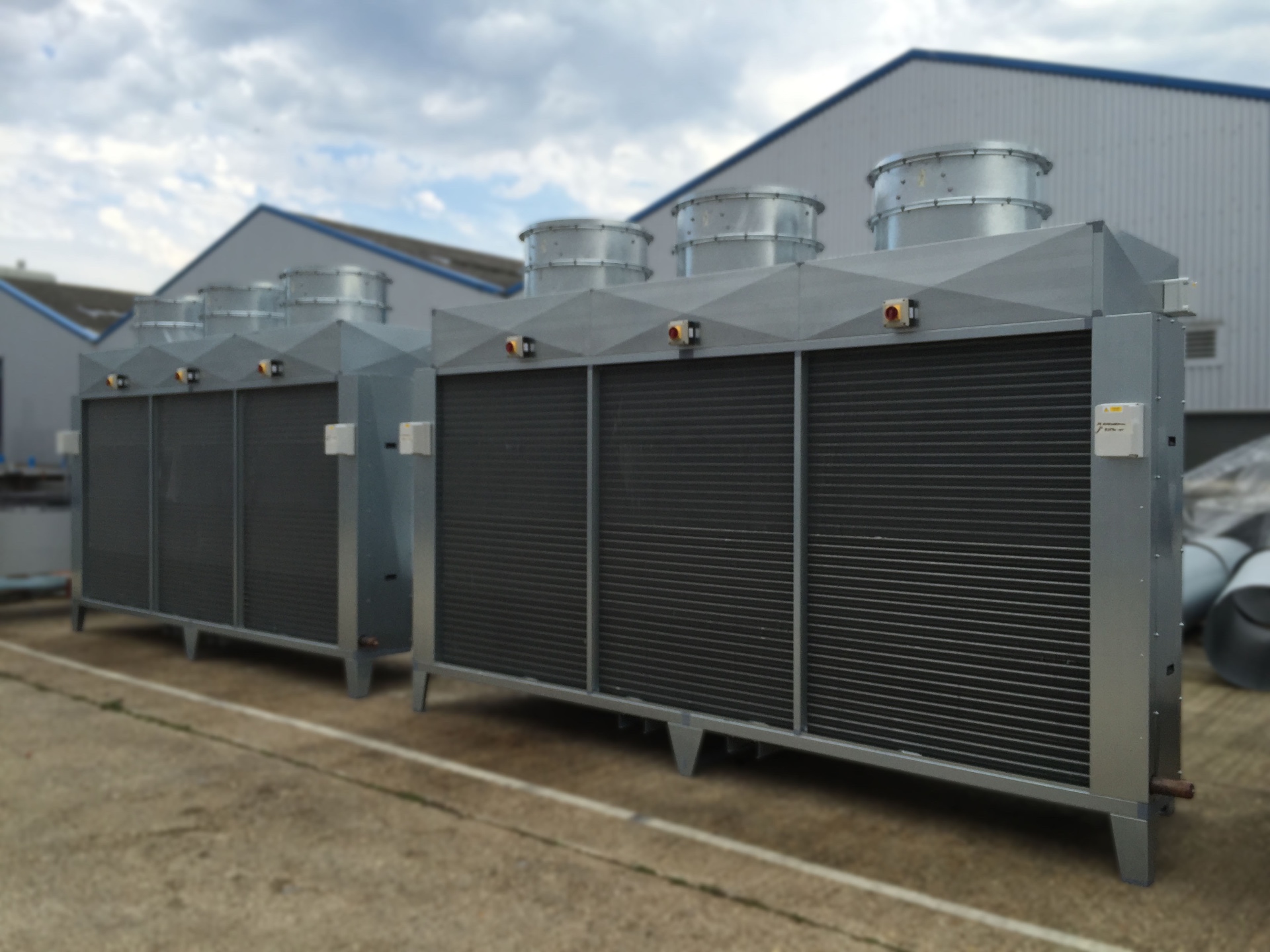

HC Coils manufactures two ranges of industrial floor mounted coolers — the FVH (high capacity) and FV (standard) — designed for blast chilling, bulk product storage, crop storage and industrial freezer applications. Floor mounted coolers with vertical air discharge provide strong, directed airflow through stored product, making them well suited to blast chilling and rapid temperature pull-down applications. The FVH range offers higher fan powers and coil capacities for the most demanding duties. Both ranges feature robust galvanised steel construction with powder coat finish, designed to withstand the rigours of industrial cold store environments including forklift traffic and washdown procedures.
High-Quality Construction
All HC Coils Industrial Air Coolers are manufactured using premium materials and precision engineering to ensure maximum efficiency and long-term reliability.
Standard construction features include:

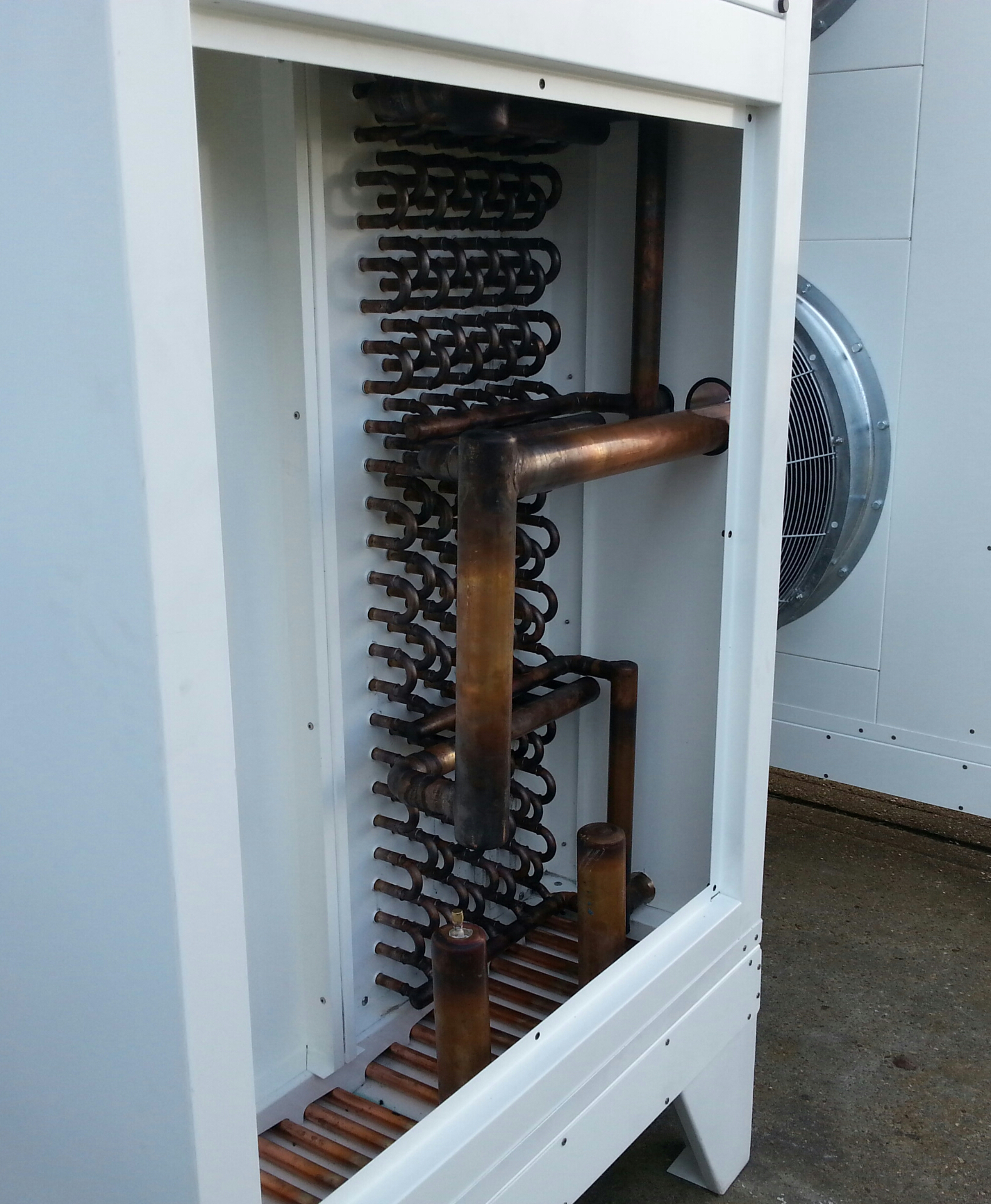

- High-efficiency copper tube and aluminium fin coils
- Mechanically bonded tube-to-fin construction for maximum heat transfer
- Heavy-duty galvanised steel casing with powder-coated finish
- Energy-efficient axial fan assemblies
- Industrial-grade fan motors for continuous operation
- Hinged drip trays for easy maintenance access
- Corrosion-resistant construction options available
- Integrated defrost heater arrangements where required
Our robust construction ensures dependable performance in demanding industrial refrigeration environments.
Energy Efficient Cooling Performance
Each Industrial Air Cooler is optimised using advanced selection software to ensure:
- Maximum cooling efficiency
- Reduced energy consumption
- Uniform air distribution
- Low pressure drop
- Quiet operation
- Precise performance matching to your application
We offer advanced fan and control technologies including:
- EC variable speed fan motors
- Low noise fan options
- Fan speed control systems
- Energy-saving motor technology
- Intelligent temperature management
Our EC fan options significantly reduce power consumption while maintaining consistent cooling performance.
Key Advantages
- Vertical air discharge — directed airflow through product for rapid cooling.
- FVH high capacity — larger coils and fans for demanding blast chilling duties.
- FV standard range — cost-effective solution for general cold storage applications.
- Robust construction — built to withstand industrial environments and washdown.
Optional Features
High External Pressure Fans — high external pressure fans or EC fans available.
Easy Clean — fan isolators for fast access and maintenance.
Air Distribution — air operated dampers, spiral ductwork, or 90° turn cowls available.
Fins — Aluminium, poly coated Aluminium, Copper, tinned Copper, or specialist coatings (Blygold, Bronzeglow, Heresite).
Defrost — electric, hot gas or warm glycol.
Casework — plain galvanised, powder coated galvanised, or 304L stainless watchcase.
Bespoke — further options available for bespoke designs.
Typical Applications
Food Processing
Cold Storage
Crop Storage
Process Cooling
Industrial Warehouses
Downloads
Product Catalogue
Full specifications, dimensions and performance data.
Operation & Maintenance Manuals
Installation, commissioning and maintenance instructions.
Standards & Accreditations
All our products meet exceptional standards, achieved by testing and inspecting our coils and products regularly and adhering to strict procedures.
"HC Coils are great to work with, on time, efficient, clean and tidy.
Project References
Blast Chiller, Essex
Product: 4× FVH floor mounted coolers (600 kW)
Achieved target pull-down from +20°C to –20°C in 8 hours. Ammonia-compatible with stainless steel options.
Common Questions — Industrial Floor Mounted Coolers (FVH/FV)
Not Sure Which Product?
Talk to our engineering team — we'll help you find the right solution.
