Dual Discharge Unit Coolers (DDS/DDL)
Dual discharge coolers in DDS and DDL ranges — designed for commercial cold rooms, retail and distribution applications.
Technical Specifications
Tube Material
Copper
Fin Material
Al, AluP, Cu, Cu-ET
Fan Options
Low Velocity, AC, EC
Casing
Plain Galvanised / White Powder Coated / Stainless Watchcase
Medium
DX / Glycol / Coolflow DXT
Dual Discharge Unit Coolers (DDS/DDL)
HC Coils offers two ranges of dual discharge unit coolers — the DDS (short throw) and DDL (long throw) — designed for commercial cold rooms, retail refrigeration, distribution centres and food processing environments. Dual discharge coolers distribute cold air from both sides of the unit, providing even temperature distribution across the storage area. The DDS range is optimised for smaller cold rooms where short air throw distances are required, while the DDL range delivers longer air throws for larger storage areas. Both ranges are available with DX refrigerant or secondary glycol cooling mediums, with EC fan options and easy-clean specifications for food-grade applications.
High-Quality Construction
All HC Coils Industrial Air Coolers are manufactured using premium materials and precision engineering to ensure maximum efficiency and long-term reliability.
Standard construction features include:

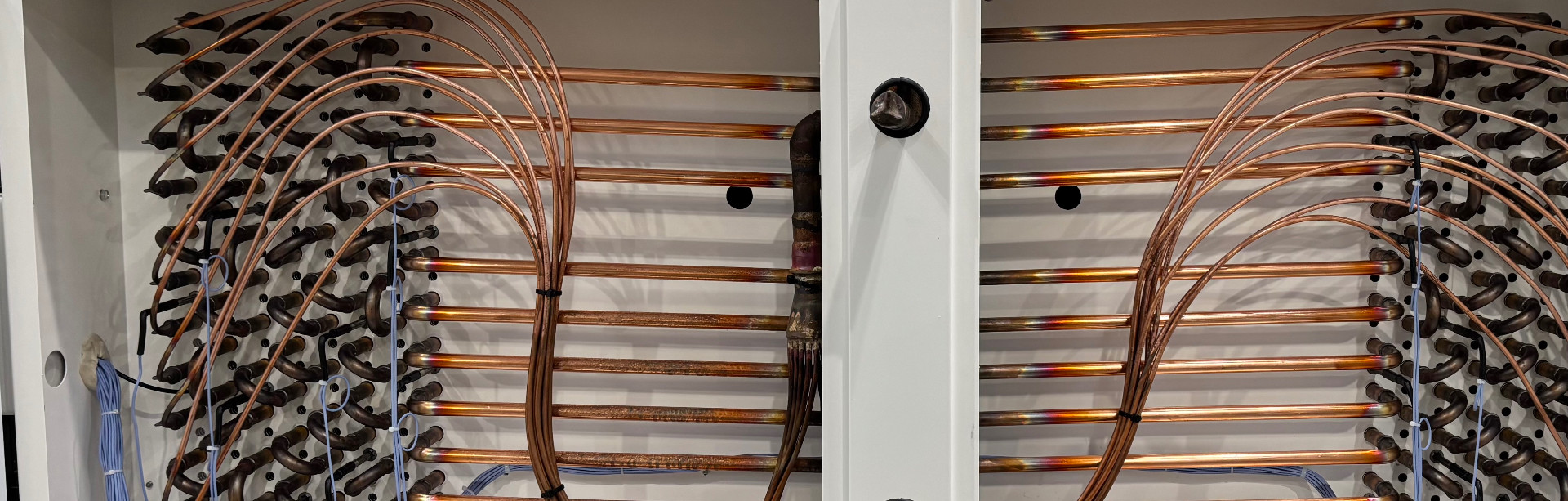

- High-efficiency copper tube and aluminium fin coils
- Mechanically bonded tube-to-fin construction for maximum heat transfer
- Heavy-duty galvanised steel casing with powder-coated finish
- Energy-efficient axial fan assemblies
- Industrial-grade fan motors for continuous operation
- Hinged drip trays for easy maintenance access
- Corrosion-resistant construction options available
- Integrated defrost heater arrangements where required
Our robust construction ensures dependable performance in demanding industrial refrigeration environments.
Energy Efficient Cooling Performance
Each Industrial Air Cooler is optimised using advanced selection software to ensure:
- Maximum cooling efficiency
- Reduced energy consumption
- Uniform air distribution
- Low pressure drop
- Quiet operation
- Precise performance matching to your application
We offer advanced fan and control technologies including:

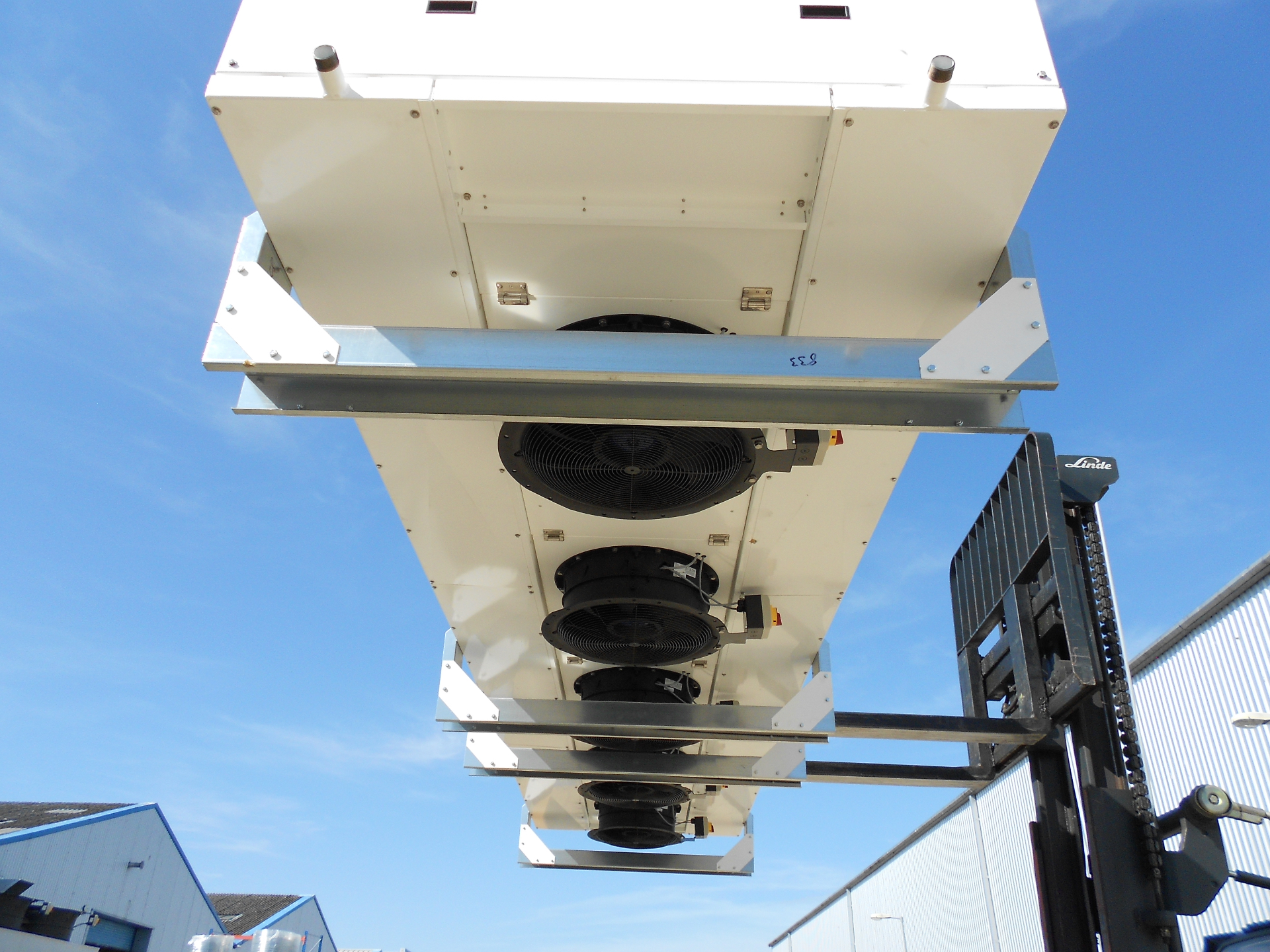

- EC variable speed fan motors
- Low noise fan options
- Fan speed control systems
- Energy-saving motor technology
- Intelligent temperature management
Our EC fan options significantly reduce power consumption while maintaining consistent cooling performance.
Key Advantages
- Improved airflow coverage — dual discharge distributes air evenly across the storage area.
- Enhanced temperature uniformity — consistent conditions throughout the cold room.
- Efficient cooling performance — optimised coil and fan design for reliable output.
- Reduced air stratification — balanced flow prevents warm and cold layers forming.
- Energy-efficient operation — EC fan options minimise running costs.
Optional Features
Fans — EC fans, low noise AC fans, defrost socks.
Easy Clean — hinged fan plates and fan isolators for fast access.
Fins — Aluminium, poly coated Aluminium, Copper, tinned Copper, or specialist coatings (Blygold, Bronzeglow, Heresite).
Defrost — electric, hot gas or warm glycol.
Casework — plain galvanised, powder coated galvanised, or 304L stainless watchcase.
Bespoke — further options available for bespoke designs.
Typical Applications
Food Processing
Cold Storage
Blast Freezing
Process Cooling
Industrial Warehouses
Downloads
Product Catalogue
Full specifications, dimensions and performance data.
Operation & Maintenance Manuals
Installation, commissioning and maintenance instructions.
Standards & Accreditations
All our products meet exceptional standards, achieved by testing and inspecting our coils and products regularly and adhering to strict procedures.
"HC Coils are great to work with, on time, efficient, clean and tidy.
Project References

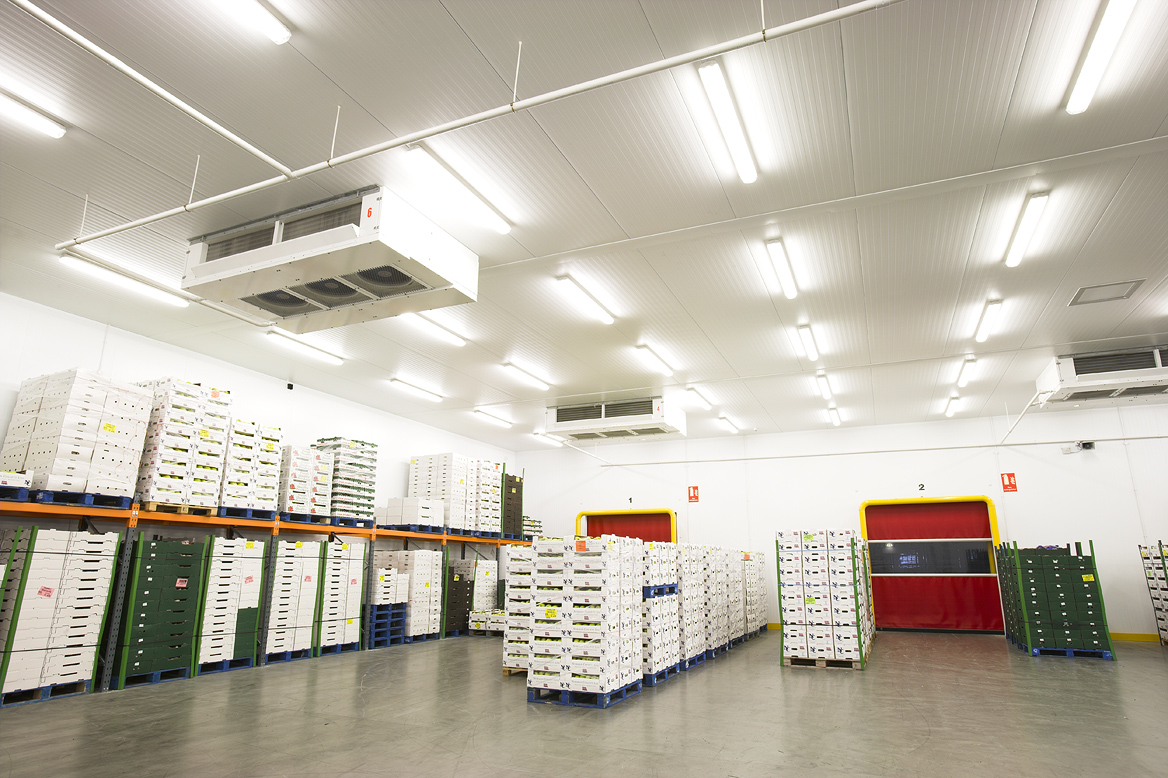

Distribution Centre, Kent
Product: 8× DDL dual discharge coolers
Long throw distribution across 1,500m² chilled warehouse. Maintained +2°C across full storage area.
Common Questions — Dual Discharge Unit Coolers (DDS/DDL)
Not Sure Which Product?
Talk to our engineering team — we'll help you find the right solution.
