Ceiling Mounted Industrial Air Coolers

Our ceiling mounted (CCZ) range offers a number of leading product advantages including our Z Fin coil configuration and multiple fan options for low noise, high pressure fans, and EC variable speed fans. The range is suitable for all applications and offers a greater surface area for cooling in a smaller footprint unit.

The CCZ Range is designed with the Z Fin Coil configuration which allows 50% more secondary (fin) to primary (tube) surface area on our evaporator coils. When using low temperature refrigeration systems, the Z Fin coil configuration offers a far more efficient solution in a more compact space then other products available. The three main benefits are the reduced fan power, increased secondary surface area (which can allow extended defrost intervals), and as the coils are more efficient our customers get a higher specification product at a lower cost.

The units can be selected for Direct Expansion refrigeration systems or Glycol secondary refrigerants.

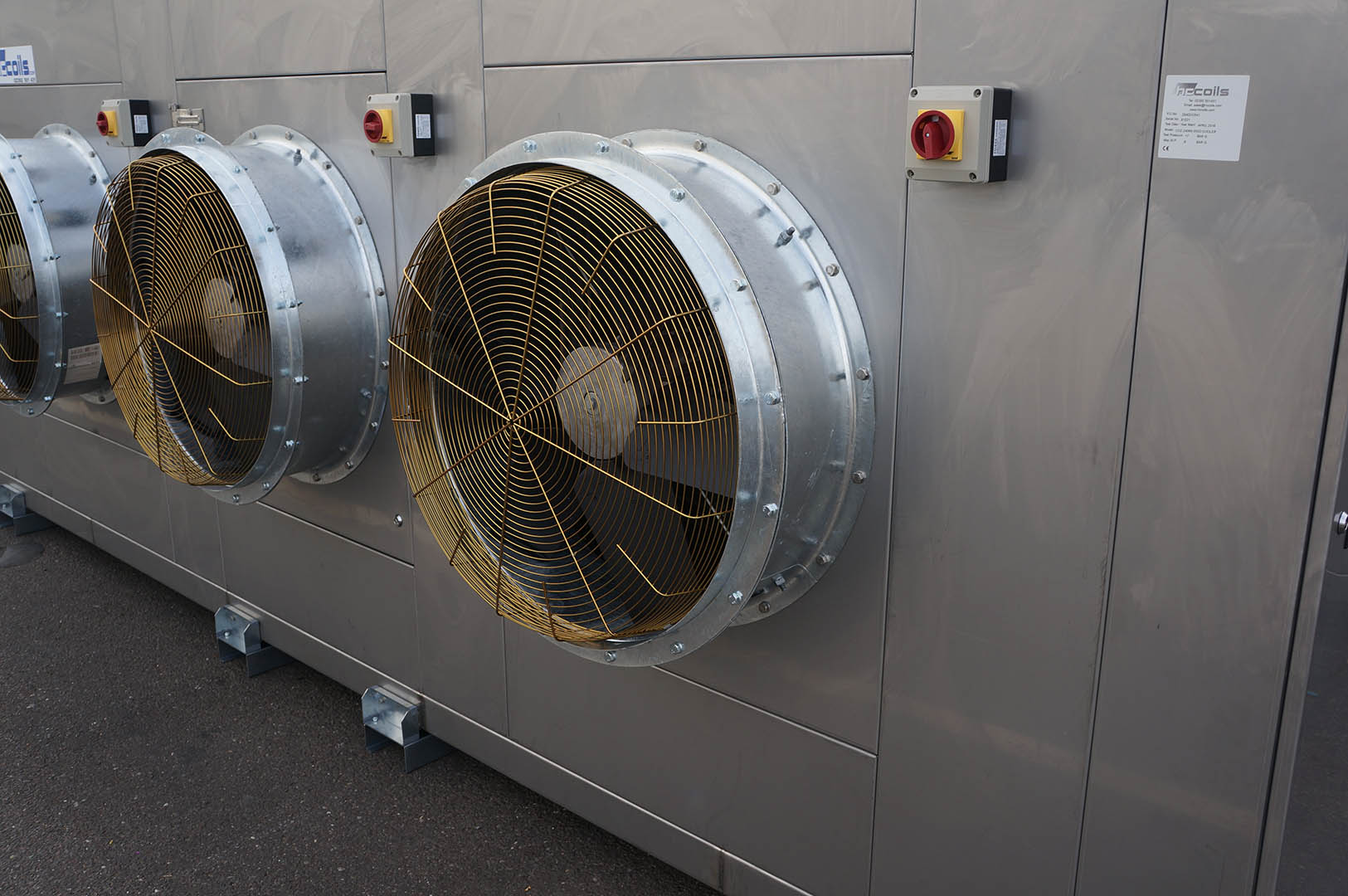

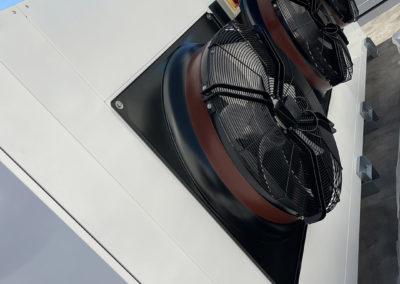

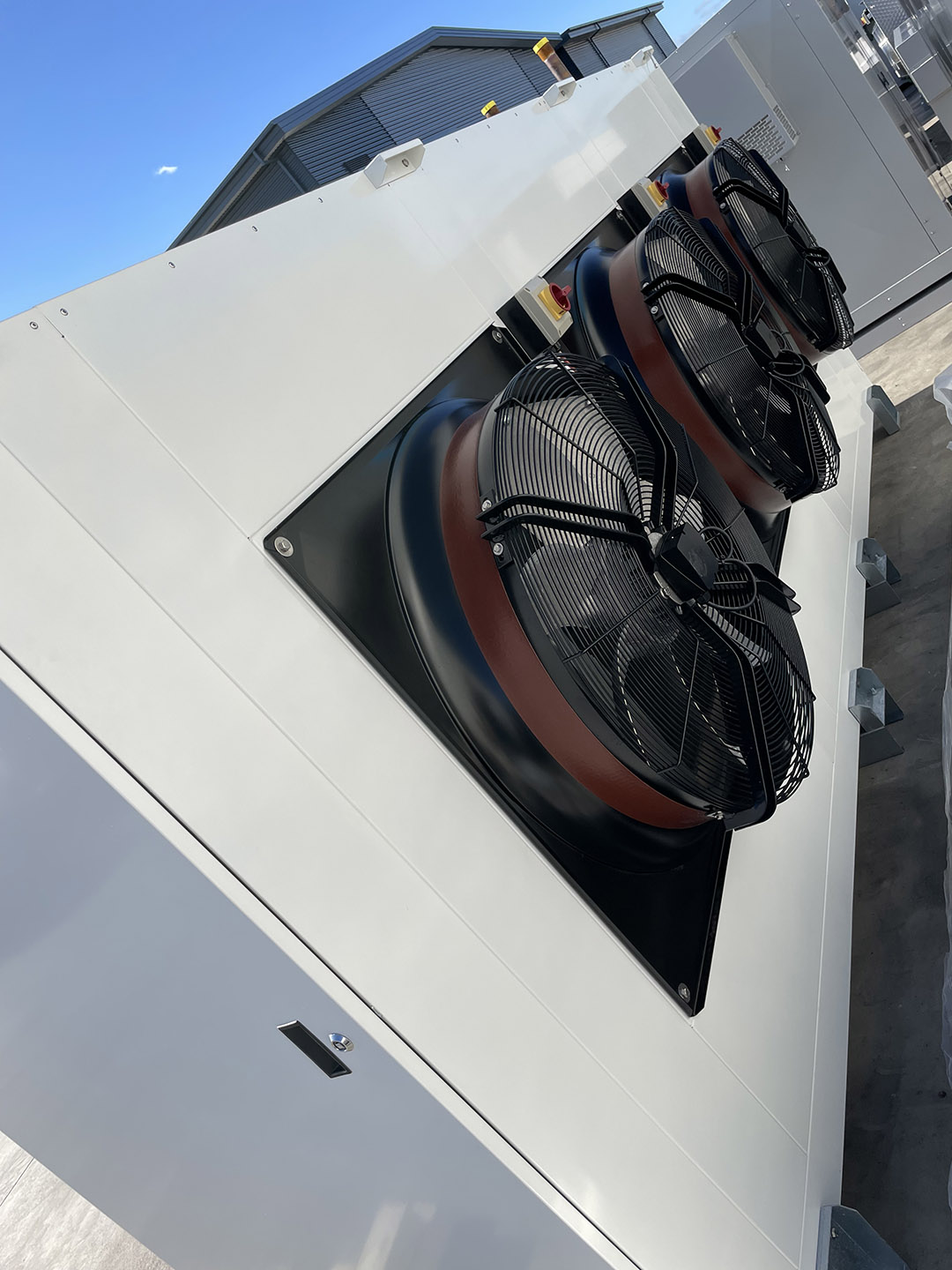

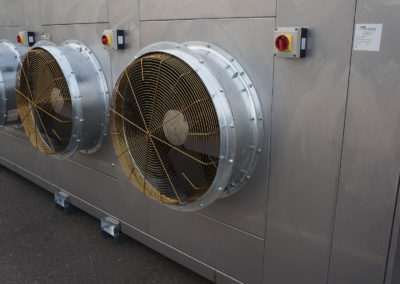

Gallery:

The table below illustrates the various material and component configurations and optional features that we can offer in our CCZ range of ceiling mounted coolers:
Tube
Copper
T304 Stainless Steel
Fin
Aluminium
Polyester Coated Aluminium
Copper
Electro tinned copper
Bronz-Glow
Blygold
Heresite
Casework
Plain Galvanised
White Powder Coated
T304 Watch Case Stainless Steel
Easy Clean Features
Clean in Position Drain Tray
Hinged Fan Plates
Fan
Ducted axial
High pressure axial
Low noise / low velocity axial
AC Owlet
EC Owlet
Air Distribution Socks
Defrost
Electric Light Duty
Electric Heavy Duty
Hot Gas
Warm Glycol
Reverse Cycle

Components:

The system comprises of sparge pipes with water distribution nozzles mounted on the air on face of the coils to effectively wet the coil surface, using mains pressure water @ 1 bar gauge, a water flow regulating valve, pressure gauge, mains water inlet solenoid valve, drain solenoid valve, purge timer and pressure gauge and manual drain points are fitted.

Connection to water mains requires a double check valve.

Optional extras:

UV Ultra Violet Water Treatment
Water Scale Prevention Device
Mains Water Booster Pump

Individual Fan Isolators

We offer lockable fan isolators per fan for enhanced safety whilst undergoing maintenance.

EC Fans

Energy saving fans, providing maximum efficiency, minimum consumption and 100% speed controlable.

EC Fans are fan assemblies with Electronically commutated external rotor motors with integrated EC variable speed controller.

HC Coils offer Ziehl Abegg EC Blue Owlet Fan options for the complete ranges of Air Coolers, Dry Air Coolers and Air Cooled Condensers.

The EC Blue Owlet fans are highly efficient – IE4 (IEC60034-31) efficiency class offering the highest efficiency with the lowest possible noise level for any duty. Integrated speed control is achieved by 0 – 10 V proportional input enabling the fan to operate at the optimum speed and lowest energy consumption.

Easy Clean

Easy Clean Casing Features:

  • Accessible clean in position drain tray with 75 mm gap under coil block with hinged baffle
  • Hinged End Covers with ¼ turn fasteners
  • Access to fan plenum
  • White Powder Coated galvanised sheet steel casing or watch case finish T304 Stainless steel casing
  • Individual Fan Isolators
  • Optional Hinged Fan Pates

Individual Fan Isolators

We offer lockable fan isolators per fan for enhanced safety whilst undergoing maintenance.

EC Fans

Energy saving fans, providing maximum efficiency, minimum consumption and 100% speed controlable.

EC Fans are fan assemblies with Electronically commutated external rotor motors with integrated EC variable speed controller.

HC Coils offer Ziehl Abegg EC Blue Owlet Fan options for the complete ranges of Air Coolers, Dry Air Coolers and Air Cooled Condensers.

The EC Blue Owlet fans are highly efficient – IE4 (IEC60034-31) efficiency class offering the highest efficiency with the lowest possible noise level for any duty. Integrated speed control is achieved by 0 – 10 V proportional input enabling the fan to operate at the optimum speed and lowest energy consumption.
